CMS-EMU SliceTest
Quick Index: [MTCC wiki][wiki][new][status][904][documents][test-beams][procedures][software]
[firmware][hardware][dataformat][mailing-lists][emu-meetings][cms-meetings]
Welcome to the central repository for all material related to the Slice Test of the CMS Endcap Muon (EMu) detector. You will find links that are relevant to this project, such as URLs to the various beam tests. You will also find the relevant Slice Test and Peripheral-Crate Commisioning (“B904”) documents.
The Emu Slice Test is a precursor to the CMS-wide Magnet Test/Cosmic Challenge. The intention of the SliceTest is to configure a full slice of the EMu detector. Such a configuration involves using, as much as possible, the final modules and (software) tools. The system should be able to provide a cosmic trigger, respond to an external trigger, and deliver its data to the central DAQ.
Note: these pages are regularly updated, make sure to hit the “refresh” button of your web browser.
EMU Slice
Test, what’s new & next relevant meetings:
- MTCC
instructions page
- CSC Wiki Pages
- Weekly
Commissioning meetings (for up-to-date schedule click here)
- Date/time: Tuesday 17h00 WEST (10h00 CST)
- CERN room:
4-S-A013
- Videoconferencing:
on EVO (see CMS community) and ES.NET (88267)
- Agenda:
see CMS/Muon
section on the Indico pages
- Summaries of previous meetings
- CERN
Shuttle service to Point 5
Slice Test Status
- EMu Control
& Configuration pages
- System Status:
- DQM
SliceTest Analysis Page
- CSC Life support: LV,
HV
and Gas (Gas Distribution
overview)
- Peripheral Crate
configuration
§
Crate 0: ME+2/1/14 and ME+2/2/27-28
§
Crate 1: ME+3/1/14 and ME+3/2/27-28
§
Crate 2: ME+1/1/27-29 and ME+1/2/27-29
§
Crate 3: ME+1/1/30-32 and ME+1/2/30-32
- Summaries of weekly SliceTest/Integration and Status reports
- TrackFinder Status (by Dan Holmes)
- System Layout:
- Network/Control
- Emuslice02, emuslice06, emuslice12: Local DAQ
- Emuslice08: Peripheral Crate control
- Emuslice09: TrackFinder and TTC control
- TTC Distribution
- DAQ: Local DAQ, Central DAQ
- Local Trigger

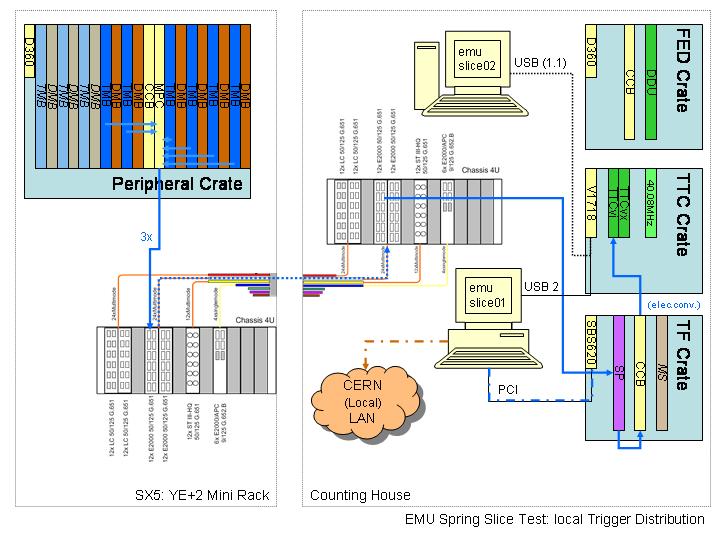

- Trigger Timing
- Calibration:
- Phone Numbers:
- Counting House: 77534 and 77535
- Cell Phones: Frank 165040, Fred 160999, Valery 160860, Petr 160537, Martin 163196, Dan 165404
- Offices: Frank - 74763, Nicole/Purdue – 79534
- DAQ & Data Files
- Global DAQ/CSC integration status
- Cosmics and Calibration Data (Local DAQ)
- CERN/Castor: /castor/cern.ch/cms/emuslice/2005
- FNAL/dCache:
- runs
1000-1011 /pnfs/cms/WAX/2/emu_slice_test/
- runs 1012-1014 /pnfs/cms/WAX/resilient/cmsmuon/emu_slice_test/
- Cosmics Data (Global DAQ)
- CERN/Castor: /castor/cern.ch/cms/emuslice/globaldaq
- FNAL: copy status
- CSC timing (ppt file with notes) [local copy]
- CSC Timing updated version, based on Oct’04 PRS workshop
- Calibration (from the PRS workshop, Oct 29 2004)
- Updating the ALCT firmware
- EMu TTC configuration
- Peripheral Crate
- Original
VME-64x 6Uconfiguration/removal notes
- VME-64x 3U backplane installation (to be added)
- Muon EndCap Nomenclature and Layout
- SX5 Layout and Maps:
- SX5 site map (pdf based on v.AL)
§ (low quality, ppt)
- CMS Magnet Test (low quality, ppt)
- DAQ Room (a.k.a. Counting House/Green Barrack):
- Fiber Installation
- Map of fiber route between YE+2 and Counting House
Previous
EMu Test Beams Web Links:
- CSC Software Twiki Page (online/offline)
- EMU Online Software Repository in TriDAS (CVS)
- EMU Online Analysis Repository (CVS)
§ Obsolete EMU Software Repository (CVS) -- for reference only, do not use
o Access to TriDAS CVS (replace TriDAS with EMU for Online Analysis Repository)
§ Anonymous (check-out only) CVSROOT = :pserver:anonymous@cmscvs.cern.ch:/cvs_server/repositories/TriDAS
§ AFS ticket (developers only) CVSROOT = :kserver:cmscvs.cern.ch:/cvs_server/repositories/TriDAS
§ SSH login CVS_RSH=ssh and CVSROOT = :ext:<username>@cmscvs.cern.ch:/cvs_server/repositories/TriDAS
§ More information see CMS/CVS webpages
- External Software
o XDAQ
§ XDAQ Porting Guide for Version 2 to 3.
o DIM
o HAL
Hardware Documentation
- CFEB
- ALCT
- TMB (incl. RAT)
- CCB, MPC, and MS
- DMB
- SP (TF)
- Dynatem D360
- TTCvi, TTCvx, and TTCex
- TTC B-Go channels: see table 5 of this document
- TTC B-Go commands used by CCB, see table 7 in this document
- TTCci and LTC
- DDU
- DCC
- External Hardware:
Relevant
Presentations and Meetings
- Annual Reviews
- Slice Test and Magnet test/cosmic challenge scope and initial experience, Muon CSC Annual Review, 21 June 2005
- Slice Tests, Muon Endcap Annual Review Sept.20, 2004
- Commissioning, Muon Endcap Annual Review, Sept.20 2004
- CSC Commissioning and Slice Test, Muon CSC Annual Review Sept.14, 2003
- EMU M&O Plans, CMS Lehman Review May 20, 2003
- CMS Muon Meetings
- Planning for Slice Test at SX5, CMS EMU Meeting June 6, 2004
- M&O Status, US CMS EMU Meeting April 16, 2004
- Plans for installation in ’04, US Endcap Muon Meeting January 9, 2004
- xDAQ Development for M&O, US CMS EMU Meeting Oct.19, 2003
- Future Plans, US EMU Meeting March 28, 2003
- Workshops
- USCMS Slice Test
Workshop,
- EMu Spring Workshop, April 18 – 29, 2005 (CERN)
- EMu Summer Workshop, July 11 – 15, 2005 (CERN)
- EMu September Workshop, Sept. 12 – 16, 2005 (CERN)
